Module 3: Skill Assessment

Back to the main module notes: Module 3: Windows Event Logs & Finding Evil

Key Takeaway

Module 3 skill assessment takeaway

Jump to question

Q1: DLL Hijacking - find DLL hijacking process
Q2-Q3: PowershellExec / CLR Injection
- Find unmanaged PowerShell execution process
- Find injector process
Q4-Q5: LSASS Dump
- Find LSASS dump process

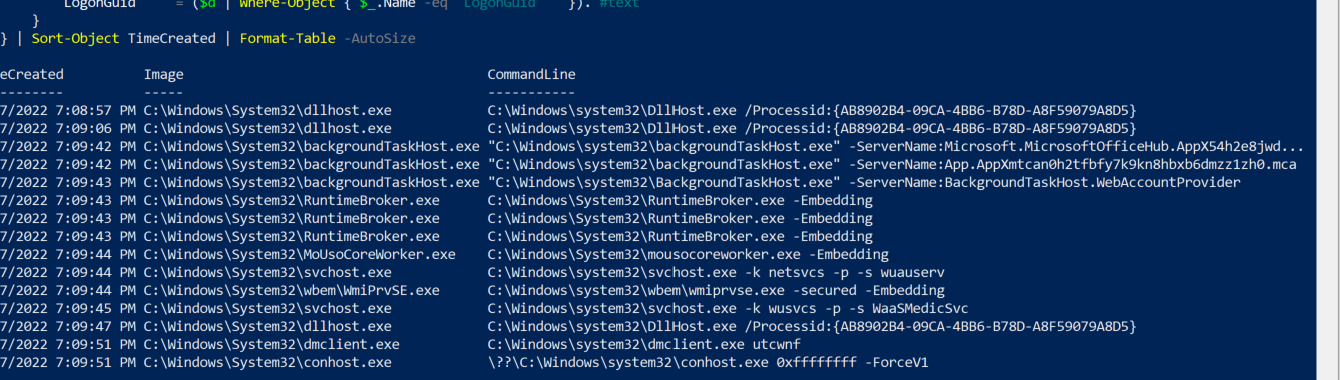

- Check for follow-on suspicious login
Q6: Strange PPID - strange parent-child execution

Module 3: Windows Event Logs & Finding Evil - main module notes
HTB-CDSA scripts - 01-dll-hijack through 04-strange-ppid

Since working through real attack logs in the skill assessment, this is where the module material actually clicked for me. Same detection scenario approach from the main notes, but now applied question by question against .evtx files.

Key Takeaway

Finding evil in Windows logs is not about memorizing every Event ID. It is about knowing how to inspect the event structure, understand the fields, correlate related activity, and build a timeline that explains what happened.

Sysmon, ETW, SilkETW, and Get-WinEvent all provide visibility, but visibility only becomes useful when the analyst can ask precise questions. AI can help me write and refine those questions faster, but the judgment still comes from understanding the logs myself.

Assessment Notes

For large .evtx files I kept the same workflow: sort with XML, dump fields, query with PowerShell. I turned that into reusable scripts in my HTB-CDSA repo (module3-finding-evil/). Start with _shared/Invoke-EvtxRecon.ps1 for first-pass recon, then run the matching 2-detect.ps1 for each assessment question below.

This assessment used older attack logs and asked me to answer specific detection questions.

Question 1: DLL Hijacking

Question: Which process executed the DLL hijacking attack?

Log path: C:\Logs\DLLHijack

Answer format: .exe

DLL Hijack Investigation via Get-WinEvent

File: DLLHijack.evtx

Date: 2022-04-27

Actor: DESKTOP-R4PEEIF\waldo

Investigation Methodology

Step 1 - Set the file path

Point to the actual .evtx file, not the folder.

$evtx = "C:\Logs\DLLHijack\DLLHijack.evtx"

Mistake to avoid: $evtx = "C:\Logs\DLLHijack" points to the folder and will fail.

Step 2 - Inspect XML structure

Before filtering anything, see what fields exist in this log.

You cannot filter what you cannot see.

$e = Get-WinEvent -Path $evtx -MaxEvents 1 -ErrorAction SilentlyContinue

([xml]$e.ToXml()).Event.EventData.Data | Select-Object Name, '#text'

Step 3 - Enumerate Event IDs

Map the terrain before hunting. Do not assume which events were collected.

Get-WinEvent -Path $evtx -ErrorAction SilentlyContinue |

    Group-Object Id | Sort-Object Count -Descending |

    Select-Object Name, Count

Result in this file:

Event ID	Count	Meaning
10	1560	Process Access
12	1345	Registry Create/Delete
7	1196	Image Loaded (DLL)
13	1028	Registry Value Set
1	27	Process Create

Target: Event ID 7 (ImageLoad) - this is where DLL hijacking shows up.

Step 4 - Extract Event ID 7 and filter for unsigned DLLs

Store results in $hits, then display. Storing silently shows nothing - always output explicitly.

$hits = Get-WinEvent -Path $evtx -FilterXPath "*[System[EventID=7]]" -ErrorAction SilentlyContinue |

ForEach-Object {

    $d = ([xml]$_.ToXml()).Event.EventData.Data

    [pscustomobject]@{

        TimeCreated      = $_.TimeCreated

        ProcessGuid      = ($d | Where-Object { $_.Name -eq 'ProcessGuid'      }).'#text'

        Image            = ($d | Where-Object { $_.Name -eq 'Image'            }).'#text'

        ImageLoaded      = ($d | Where-Object { $_.Name -eq 'ImageLoaded'      }).'#text'

        OriginalFileName = ($d | Where-Object { $_.Name -eq 'OriginalFileName' }).'#text'

        Signed           = ($d | Where-Object { $_.Name -eq 'Signed'           }).'#text'

        Signature        = ($d | Where-Object { $_.Name -eq 'Signature'        }).'#text'

        SignatureStatus  = ($d | Where-Object { $_.Name -eq 'SignatureStatus'   }).'#text'

    }

}

$hits | Where-Object { $_.Signed -eq 'false' } | Sort-Object TimeCreated | Format-List

Result - two suspicious loads:

TimeCreated      : 4/27/2022 6:39:11 PM

Image            : C:\ProgramData\Dism.exe

ImageLoaded      : C:\ProgramData\DismCore.dll

OriginalFileName : ORIGINALFILENAMEGOESHERE

Signed           : false

SignatureStatus  : Unavailable

TimeCreated      : 4/27/2022 6:39:30 PM

Image            : C:\Windows\System32\rundll32.exe

ImageLoaded      : C:\ProgramData\DismCore.dll

OriginalFileName : ORIGINALFILENAMEGOESHERE

Signed           : false

SignatureStatus  : Unavailable

Indicators identified:

Indicator	Why suspicious
`Signed = false`	Legitimate system DLLs are always Microsoft-signed
`C:\ProgramData\Dism.exe`	Real Dism.exe lives in `C:\Windows\System32\`
`C:\ProgramData\DismCore.dll`	Real DismCore.dll lives in `C:\Windows\System32\Dism\`
`OriginalFileName = ORIGINALFILENAMEGOESHERE`	Fake placeholder - custom-compiled payload
`SignatureStatus = Unavailable`	No signature block in the PE file at all
19 second gap between loads	Human operator manually running two commands

Reading the fields:

Image = the process that loaded the DLL
ImageLoaded = the DLL that got loaded
ProcessGuid = unique identifier used to pivot to other events

Step 5 - Pivot ProcessGuid to Event ID 1 (who ran Dism.exe)

Event ID 7 tells you what loaded. Event ID 1 tells you who ran it and from where.

Use ProcessGuid from Step 4 to find the process creation event.

$suspectGuid = '{67e39d39-f03f-6269-9b01-000000000300}'

Get-WinEvent -Path $evtx -FilterXPath "*[System[EventID=1]]" -ErrorAction SilentlyContinue |

ForEach-Object {

    $d = ([xml]$_.ToXml()).Event.EventData.Data

    $pg = ($d | Where-Object { $_.Name -eq 'ProcessGuid' }).'#text'

    if ($pg -eq $suspectGuid) {

        [pscustomobject]@{

            TimeCreated    = $_.TimeCreated

            ProcessId      = ($d | Where-Object { $_.Name -eq 'ProcessId'          }).'#text'

            Image          = ($d | Where-Object { $_.Name -eq 'Image'              }).'#text'

            CommandLine    = ($d | Where-Object { $_.Name -eq 'CommandLine'        }).'#text'

            ParentImage    = ($d | Where-Object { $_.Name -eq 'ParentImage'        }).'#text'

            ParentCmdLine  = ($d | Where-Object { $_.Name -eq 'ParentCommandLine'  }).'#text'

            User           = ($d | Where-Object { $_.Name -eq 'User'               }).'#text'

            IntegrityLevel = ($d | Where-Object { $_.Name -eq 'IntegrityLevel'     }).'#text'

        }

    }

} | Format-List

Result:

TimeCreated    : 4/27/2022 6:39:11 PM

Image          : C:\ProgramData\Dism.exe

CommandLine    : Dism

ParentImage    : C:\Windows\System32\cmd.exe

ParentCmdLine  : "C:\Windows\system32\cmd.exe"

User           : DESKTOP-R4PEEIF\waldo

IntegrityLevel : Medium

Process tree:

waldo

  └─ cmd.exe

       └─ C:\ProgramData\Dism.exe   (typed "Dism" - PATH resolved to rogue binary)

            └─ loaded C:\ProgramData\DismCore.dll

Step 6 - Pivot ProcessGuid to Event ID 1 (who ran rundll32.exe)

Same pivot for the second suspicious load using rundll32’s ProcessGuid.

$rundll32Guid = '{67e39d39-f052-6269-a001-000000000300}'

Get-WinEvent -Path $evtx -FilterXPath "*[System[EventID=1]]" -ErrorAction SilentlyContinue |

ForEach-Object {

    $d = ([xml]$_.ToXml()).Event.EventData.Data

    $pg = ($d | Where-Object { $_.Name -eq 'ProcessGuid' }).'#text'

    if ($pg -eq $rundll32Guid) {

        [pscustomobject]@{

            TimeCreated    = $_.TimeCreated

            ProcessId      = ($d | Where-Object { $_.Name -eq 'ProcessId'          }).'#text'

            Image          = ($d | Where-Object { $_.Name -eq 'Image'              }).'#text'

            CommandLine    = ($d | Where-Object { $_.Name -eq 'CommandLine'        }).'#text'

            ParentImage    = ($d | Where-Object { $_.Name -eq 'ParentImage'        }).'#text'

            ParentCmdLine  = ($d | Where-Object { $_.Name -eq 'ParentCommandLine'  }).'#text'

            User           = ($d | Where-Object { $_.Name -eq 'User'               }).'#text'

            IntegrityLevel = ($d | Where-Object { $_.Name -eq 'IntegrityLevel'     }).'#text'

        }

    }

} | Format-List

Result:

TimeCreated    : 4/27/2022 6:39:30 PM

Image          : C:\Windows\System32\rundll32.exe

CommandLine    : rundll32.exe DismCore.dll,main

ParentImage    : C:\Windows\System32\cmd.exe

ParentCmdLine  : "C:\Windows\system32\cmd.exe"

User           : DESKTOP-R4PEEIF\waldo

IntegrityLevel : Medium

Note: rundll32.exe DismCore.dll,main - attacker directly called the main export of the malicious DLL. The DLL was designed to be executed this way. This is LOLBin abuse (Living Off the Land Binary).

Step 7 - Check for child processes spawned by Dism.exe

Search Event ID 1 where ParentProcessGuid matches - to find anything Dism.exe launched.

Get-WinEvent -Path $evtx -FilterXPath "*[System[EventID=1]]" -ErrorAction SilentlyContinue |

ForEach-Object {

    $d = ([xml]$_.ToXml()).Event.EventData.Data

    $parentGuid = ($d | Where-Object { $_.Name -eq 'ParentProcessGuid' }).'#text'

    if ($parentGuid -eq '{67e39d39-f03f-6269-9b01-000000000300}') {

        [pscustomobject]@{

            TimeCreated = $_.TimeCreated

            ProcessId   = ($d | Where-Object { $_.Name -eq 'ProcessId'   }).'#text'

            Image       = ($d | Where-Object { $_.Name -eq 'Image'       }).'#text'

            CommandLine = ($d | Where-Object { $_.Name -eq 'CommandLine' }).'#text'

        }

    }

} | Format-List

Result: No results - Dism.exe spawned no child processes. The payload ran entirely inside Dism.exe’s memory space. This is expected DLL hijack behavior - code executes within the hijacked process, not as a new process.

Step 8 - Check impact (network, files, registry)

Network connections (Event ID 3):

Get-WinEvent -Path $evtx -FilterXPath "*[System[EventID=3]]" -ErrorAction SilentlyContinue |

ForEach-Object {

    $d = ([xml]$_.ToXml()).Event.EventData.Data

    $pg = ($d | Where-Object { $_.Name -eq 'ProcessGuid' }).'#text'

    if ($pg -eq '{67e39d39-f03f-6269-9b01-000000000300}') {

        [pscustomobject]@{

            TimeCreated  = $_.TimeCreated

            DestIP       = ($d | Where-Object { $_.Name -eq 'DestinationIp'       }).'#text'

            DestPort     = ($d | Where-Object { $_.Name -eq 'DestinationPort'     }).'#text'

            DestHostname = ($d | Where-Object { $_.Name -eq 'DestinationHostname' }).'#text'

        }

    }

} | Format-List

File creation (Event ID 11):

Get-WinEvent -Path $evtx -FilterXPath "*[System[EventID=11]]" -ErrorAction SilentlyContinue |

ForEach-Object {

    $d = ([xml]$_.ToXml()).Event.EventData.Data

    $pg = ($d | Where-Object { $_.Name -eq 'ProcessGuid' }).'#text'

    if ($pg -eq '{67e39d39-f03f-6269-9b01-000000000300}') {

        [pscustomobject]@{

            TimeCreated    = $_.TimeCreated

            TargetFilename = ($d | Where-Object { $_.Name -eq 'TargetFilename' }).'#text'

        }

    }

} | Format-List

Registry writes (Event ID 13):

Get-WinEvent -Path $evtx -FilterXPath "*[System[EventID=13]]" -ErrorAction SilentlyContinue |

ForEach-Object {

    $d = ([xml]$_.ToXml()).Event.EventData.Data

    $pg = ($d | Where-Object { $_.Name -eq 'ProcessGuid' }).'#text'

    if ($pg -eq '{67e39d39-f03f-6269-9b01-000000000300}') {

        [pscustomobject]@{

            TimeCreated  = $_.TimeCreated

            TargetObject = ($d | Where-Object { $_.Name -eq 'TargetObject' }).'#text'

            Details      = ($d | Where-Object { $_.Name -eq 'Details'      }).'#text'

        }

    }

} | Format-List

Results:

Network: No connections
Files: No drops
Registry: Only BAM key write (HKLM\System\CurrentControlSet\Services\bam\State\UserSettings\...) - this is Windows automatically recording execution history, not malware persistence

Pivot Logic Summary

Query type	Field matched	Answers
`ProcessGuid = suspectGuid` on Event 1	Who spawned this process	Parent -> child relationship
`ParentProcessGuid = suspectGuid` on Event 1	What this process spawned	Child processes
`ProcessGuid = suspectGuid` on Event 3/11/13	What this process did	Network, files, registry

Final Attack Chain

DESKTOP-R4PEEIF\waldo

  └─ C:\Windows\System32\cmd.exe

       ├─ [18:39:11] typed "Dism"

       │     └─ C:\ProgramData\Dism.exe          <- rogue binary (not System32)

       │          └─ side-loaded C:\ProgramData\DismCore.dll

       │               └─ ran inside Dism.exe memory (no child process)

       │

       └─ [18:39:30] typed "rundll32.exe DismCore.dll,main"

             └─ C:\Windows\System32\rundll32.exe  <- LOLBin

                  └─ directly called main export of DismCore.dll

DLL Hijack Indicators Cheat Sheet

Indicator	Why it matters
`Signed = false`	No Microsoft certificate
DLL loaded from wrong path	DLL search order abuse
`OriginalFileName` is placeholder or mismatched	Custom-compiled payload
`SignatureStatus = Unavailable`	No signature block in PE file
System binary in user-writable path (`C:\ProgramData\`)	No admin rights needed to plant it
rundll32 + DLL + export name	LOLBin execution of payload
Human-spaced timestamps	Manual operator, not automation
No child processes from hijacked process	Payload ran in-memory inside hijacked process

Questions 2 and 3: Unmanaged PowerShell / CLR Injection

These two questions are connected because the first asks for the process that executed unmanaged PowerShell code, and the second asks for the process that injected into it.

Question	What I Need to Find	Log Path	Answer Format
Q2	Process that executed unmanaged PowerShell code	`C:\Logs\PowershellExec`	`.exe`
Q3	Process that injected into the unmanaged PowerShell process	`C:\Logs\PowershellExec`	`.exe`

Unmanaged PowerShell / CLR Injection Investigation via Get-WinEvent

File: PowershellExec.evtx

Date: 2022-04-27

Actor: DESKTOP-R4PEEIF\waldo

Answer: Calculator.exe

Background - What is Unmanaged PowerShell?

Normal PowerShell execution uses powershell.exe which is a managed .NET application.

Unmanaged PowerShell is when an attacker runs PowerShell code inside another process - without ever launching powershell.exe.

The .NET runtime must be initialized inside the host process to do this. That initialization leaves a fingerprint in Event ID 7 (ImageLoad).

IOCs - What to Look For

DLL	Role	IOC when loaded by unexpected process
`clr.dll`	.NET Common Language Runtime	Any non-.NET native process loading this is running .NET code
`clrjit.dll`	JIT compiler	Same - only present when .NET is executing
`System.Management.Automation.dll`	PowerShell engine	Non-`powershell.exe` process loading this = PowerShell running inside it

Key rule: clr.dll + clrjit.dll loading in a process = C# / .NET bytecode executing inside that process.

Key signal: Large time gap between process spawn and CLR load = injection, not normal startup.

Investigation Methodology

Step 1 - Set path and enumerate Event IDs

$evtx = "C:\Logs\PowershellExec\PowershellExec.evtx"

Get-WinEvent -Path $evtx -ErrorAction SilentlyContinue |

    Group-Object -Property Id -NoElement |

    Sort-Object Count -Descending

Result:

Event ID	Count	Meaning
12	23201	Registry Create/Delete
10	11360	Process Access
7	3694	Image Loaded - target
13	2925	Registry Value Set
1	65	Process Create

Target: Event ID 7 (ImageLoad) - CLR DLL loads show up here.

Step 2 - Extract all Event ID 7 into $hits

$hits = Get-WinEvent -Path $evtx -FilterXPath "*[System[EventID=7]]" -ErrorAction SilentlyContinue |

ForEach-Object {

    $d = ([xml]$_.ToXml()).Event.EventData.Data

    [pscustomobject]@{

        TimeCreated = $_.TimeCreated

        ProcessGuid = ($d | Where-Object { $_.Name -eq 'ProcessGuid' }).'#text'

        Image       = ($d | Where-Object { $_.Name -eq 'Image'       }).'#text'

        ImageLoaded = ($d | Where-Object { $_.Name -eq 'ImageLoaded' }).'#text'

        Signed      = ($d | Where-Object { $_.Name -eq 'Signed'      }).'#text'

    }

}

Step 3 - Find all processes that loaded CLR DLLs

“Don’t exclude any process by name - even powershell.exe is included.”

$hits | Where-Object {

    $_.ImageLoaded -match 'clr\.dll$|clrjit\.dll$'

} | Group-Object Image | Select-Object Name, Count | Sort-Object Count -Descending

Result:

Process	Count
`powershell.exe`	2
`Calculator.exe`	2

Both loaded clr.dll and clrjit.dll. Now determine which one is legitimate.

Step 4 - Timeline gap analysis

“Legitimate .NET apps load CLR within seconds of starting. Large gap = injection.”

Pivot each CLR-loading process to Event ID 1 to get spawn time, then compare against CLR load time:

# Get spawn time for Calculator.exe

$calcGuid = '{67e39d39-f4cc-6269-3203-000000000300}'

Get-WinEvent -Path $evtx -FilterXPath "*[System[EventID=1]]" -ErrorAction SilentlyContinue |

ForEach-Object {

    $d = ([xml]$_.ToXml()).Event.EventData.Data

    $pg = ($d | Where-Object { $_.Name -eq 'ProcessGuid' }).'#text'

    if ($pg -eq $calcGuid) {

        [pscustomobject]@{

            TimeCreated    = $_.TimeCreated

            Image          = ($d | Where-Object { $_.Name -eq 'Image'             }).'#text'

            CommandLine    = ($d | Where-Object { $_.Name -eq 'CommandLine'       }).'#text'

            ParentImage    = ($d | Where-Object { $_.Name -eq 'ParentImage'       }).'#text'

            ParentCmdLine  = ($d | Where-Object { $_.Name -eq 'ParentCommandLine' }).'#text'

            User           = ($d | Where-Object { $_.Name -eq 'User'              }).'#text'

            IntegrityLevel = ($d | Where-Object { $_.Name -eq 'IntegrityLevel'    }).'#text'

        }

    }

} | Format-List

Timeline comparison:

Process	Spawned	CLR Loaded	Gap	Verdict
`powershell.exe`	6:58:44 PM	6:58:45 PM	0.8s	Normal - .NET app startup
`Calculator.exe`	6:58:36 PM	6:59:42 PM	66s	Injection - CLR loaded long after startup

Calculator.exe is the injection target - it is a UWP/WinRT app with no legitimate reason to load the legacy .NET Framework 4.x CLR (C:\Windows\Microsoft.NET\Framework64\v4.0.30319\clr.dll).

Step 5 - Confirm injector via Event ID 8 (CreateRemoteThread)

“Who created a thread inside Calculator.exe at exactly the moment CLR loaded?”

Get-WinEvent -Path $evtx -FilterXPath "*[System[EventID=8]]" -ErrorAction SilentlyContinue |

ForEach-Object {

    $d = ([xml]$_.ToXml()).Event.EventData.Data

    [pscustomobject]@{

        TimeCreated   = $_.TimeCreated

        SourceImage   = ($d | Where-Object { $_.Name -eq 'SourceImage'   }).'#text'

        TargetImage   = ($d | Where-Object { $_.Name -eq 'TargetImage'   }).'#text'

        StartAddress  = ($d | Where-Object { $_.Name -eq 'StartAddress'  }).'#text'

        StartModule   = ($d | Where-Object { $_.Name -eq 'StartModule'   }).'#text'

        StartFunction = ($d | Where-Object { $_.Name -eq 'StartFunction' }).'#text'

    }

} | Format-List

Result:

TimeCreated   : 4/27/2022 6:59:42 PM

SourceImage   : C:\Windows\System32\rundll32.exe

TargetImage   : C:\Program Files\WindowsApps\...\Calculator.exe

StartAddress  : 0x0000025398BD0000

StartModule   : -

StartFunction : -

Timestamp match: 6:59:42 PM = exact same second CLR loaded in Calculator.exe.

StartModule/StartFunction = - = thread started at raw memory address = shellcode injection.

Full Attack Chain

waldo

  └─ powershell.exe (interactive session)

       └─ whoami.exe  <- recon

rundll32.exe

  └─ [6:59:42 PM] CreateRemoteThread -> Calculator.exe   <- shellcode injected

                       └─ clr.dll loaded                 <- .NET runtime initialized

                       └─ clrjit.dll loaded              <- JIT compiler started

                            └─ PowerShell code executes inside Calculator.exe

Pivot Logic Summary

Query	Event ID	Answers
Filter `clr.dll` + `clrjit.dll` loads	7	Which processes loaded CLR
Compare spawn time vs CLR load time	1 + 7	Which process had CLR injected (large gap)
TargetImage = injection target	8	Who injected via CreateRemoteThread

CLR Injection IOC Cheat Sheet

Indicator	Why it matters
`clr.dll` + `clrjit.dll` in non-.NET process	.NET bytecode executing where it shouldn’t
Large time gap (>30s) between spawn and CLR load	CLR was injected, not loaded at startup
UWP/native process loading legacy .NET Framework CLR	Wrong runtime for that process type
`StartModule: -` in Event ID 8	Thread started from raw memory = shellcode
`StartFunction: -` in Event ID 8	No named export = reflective/shellcode injection
Event ID 8 timestamp matches CLR load timestamp	Injection moment confirmed

Question 3 after we identified which was responsible we do basic query

tep 1 - Confirm the injection target** Calculator.exe had a 66 second gap between spawn and CLR load - that’s the injection target.

Step 2 - Check Event ID 8 (CreateRemoteThread) for that target “Who created a thread inside Calculator.exe?”

Get-WinEvent -Path $evtx -FilterXPath "*[System[EventID=8]]" -ErrorAction SilentlyContinue |
ForEach-Object {
    $d = ([xml]$_.ToXml()).Event.EventData.Data
    [pscustomobject]@{
        TimeCreated   = $_.TimeCreated
        SourceImage   = ($d | Where-Object { $_.Name -eq 'SourceImage'   }).'#text'
        TargetImage   = ($d | Where-Object { $_.Name -eq 'TargetImage'   }).'#text'
        StartAddress  = ($d | Where-Object { $_.Name -eq 'StartAddress'  }).'#text'
        StartModule   = ($d | Where-Object { $_.Name -eq 'StartModule'   }).'#text'
        StartFunction = ($d | Where-Object { $_.Name -eq 'StartFunction' }).'#text'
    }
} | Format-List

Step 3 - Correlate timestamp “Does the Event ID 8 timestamp match when CLR loaded?”

6:59:42 PM - rundll32.exe creates remote thread in Calculator.exe
6:59:42 PM - Calculator.exe loads clr.dll + clrjit.dll

These two questions are connected because the first identifies the LSASS dump process, and the second checks whether suspicious login activity followed.

Question	What I Need to Find	Log Path	Answer Format
Q4	Process that performed the LSASS dump	`C:\Logs\Dump`	`.exe`
Q5	Whether an ill-intended login occurred after the dump	`C:\Logs\Dump`	Yes / No

LSASS Dump Investigation via Get-WinEvent

File: LsassDump.evtx

Date: 2022-04-27

Actor: DESKTOP-R4PEEIF\waldo

Answer: ProcessHacker.exe

Investigation Methodology

Step 1 - Set path and inspect XML structure

$evtx = "C:\Logs\Dump\LsassDump.evtx"

$e = Get-WinEvent -FilterHashtable @{Path=$evtx; Id=10} -MaxEvents 1 -ErrorAction SilentlyContinue

([xml]$e.ToXml()).Event.EventData.Data | Select-Object Name, '#text'

Key fields in Event ID 10:

SourceImage - process that opened the handle
TargetImage - process that was accessed
GrantedAccess - what access rights were requested
CallTrace - DLL call stack

Step 2 - Enumerate GrantedAccess values against lsass

“Understand what access masks exist before filtering.”

Get-WinEvent -FilterHashtable @{Path=$evtx; Id=10} -ErrorAction SilentlyContinue |

ForEach-Object {

    $d = ([xml]$_.ToXml()).Event.EventData.Data

    $tgt = ($d | Where-Object { $_.Name -eq 'TargetImage' }).'#text'

    if ($tgt -match 'lsass') {

        ($d | Where-Object { $_.Name -eq 'GrantedAccess' }).'#text'

    }

} | Group-Object | Sort-Object Count -Descending

Result:

GrantedAccess	Count	Verdict
`0x1000`	13	Normal - PROCESS_QUERY_LIMITED_INFORMATION
`0x1400`	3	Elevated - worth checking
`0x1fffff`	2	PROCESS_ALL_ACCESS - dump IOC

Step 3 - Hunt for 0x1fffff access on lsass

“Full access to lsass memory = credential dump.”

Get-WinEvent -FilterHashtable @{Path=$evtx; Id=10} -ErrorAction SilentlyContinue |

ForEach-Object {

    $d = ([xml]$_.ToXml()).Event.EventData.Data

    $tgt    = ($d | Where-Object { $_.Name -eq 'TargetImage'     }).'#text'

    $access = ($d | Where-Object { $_.Name -eq 'GrantedAccess'   }).'#text'

    if ($tgt -match 'lsass' -and $access -eq '0x1fffff') {

        [pscustomobject]@{

            TimeCreated   = $_.TimeCreated

            SourceImage   = ($d | Where-Object { $_.Name -eq 'SourceImage'     }).'#text'

            SourcePID     = ($d | Where-Object { $_.Name -eq 'SourceProcessId' }).'#text'

            TargetImage   = $tgt

            GrantedAccess = $access

            CallTrace     = ($d | Where-Object { $_.Name -eq 'CallTrace'       }).'#text'

        }

    }

} | Format-List

Result:

SourceImage   : C:\Users\waldo\Downloads\processhacker-3.0.4801-bin\64bit\ProcessHacker.exe

TargetImage   : C:\Windows\system32\lsass.exe

GrantedAccess : 0x1fffff

IOCs Confirmed

IOC	Value
GrantedAccess `0x1fffff`	PROCESS_ALL_ACCESS - only needed to dump memory
SourceImage path	`C:\Users\waldo\Downloads\` - not installed, dropped by attacker
SourceImage ≠ TargetImage	Untrusted process accessing lsass
UNKNOWN entries in CallTrace	Shellcode or reflectively loaded code

LSASS Dump IOC Cheat Sheet

GrantedAccess	Meaning
`0x1000`	PROCESS_QUERY_LIMITED_INFORMATION - normal
`0x1400`	PROCESS_QUERY_INFORMATION - elevated, check context
`0x1fffff`	PROCESS_ALL_ACCESS - dump IOC
`0x1010`	VM_READ + QUERY_LIMITED - Mimikatz signature
`0x143a`	Common dumper access mask

Suspicious pattern:

SourceImage from user-writable path + 0x1fffff on lsass = credential dump
UNKNOWN modules in CallTrace = shellcode/reflective injection

For answer five again basic get-winevent

what would have been suspicious?

PS C:\Logs\Dump>
PS C:\Logs\Dump> $start = Get-Date '4/27/2022 7:08:56 PM'
PS C:\Logs\Dump>
PS C:\Logs\Dump> Get-WinEvent -FilterHashtable @{Path=$evtx; Id=1; StartTime=$start} -ErrorAction SilentlyContinue |
>> ForEach-Object {
>>     $d = ([xml]$_.ToXml()).Event.EventData.Data
>>     [pscustomobject]@{
>>         TimeCreated   = $_.TimeCreated
>>         Image         = ($d | Where-Object { $_.Name -eq 'Image'       }).'#text'
>>         CommandLine   = ($d | Where-Object { $_.Name -eq 'CommandLine' }).'#text'
>>         ParentImage   = ($d | Where-Object { $_.Name -eq 'ParentImage' }).'#text'
>>         User          = ($d | Where-Object { $_.Name -eq 'User'        }).'#text'
>>         LogonGuid     = ($d | Where-Object { $_.Name -eq 'LogonGuid'   }).'#text'
>>     }
>> } | Sort-Object TimeCreated | Format-Table -AutoSize

Event Viewer screenshot: follow-on suspicious login after LSASS dump (Event ID 4624)

Event Viewer screenshot showing follow-on suspicious login after the LSASS dump timeline.

suspicious if

net.exe use \target\c$ /user:Administrator psexec.exe \target -u Administrator wmic.exe /node:target process call create runas.exe /user:Administrator cmd.exe

Question 6: Strange PPID

Question: Which process was used to temporarily execute code based on a strange parent-child relationship?

Log path: C:\Logs\StrangePPID

Answer format: .exe

Strange PPID Investigation via Get-WinEvent

File: StrangePPID.evtx

Date: 2022-04-27

Actor: DESKTOP-R4PEEIF\waldo

Answer: WerFault.exe

Investigation Methodology

Step 1 - Set path and enumerate Event IDs

$evtx = "C:\Logs\StrangePPID\StrangePPID.evtx"

Get-WinEvent -Path $evtx -ErrorAction SilentlyContinue |

    Group-Object -Property Id -NoElement |

    Sort-Object Count -Descending

Result:

Event ID	Count	Meaning
13	931	Registry Value Set
12	554	Registry Create/Delete
10	467	Process Access
7	186	Image Loaded
1	4	Process Create - target
8	1	CreateRemoteThread - injection

Target: Event ID 1 (only 4 events) - small set, dump all.

Step 2 - Dump all Event ID 1 process creations

“With only 4 events the anomaly stands out immediately.”

Get-WinEvent -FilterHashtable @{Path=$evtx; Id=1} -ErrorAction SilentlyContinue |

ForEach-Object {

    $d = ([xml]$_.ToXml()).Event.EventData.Data

    [pscustomobject]@{

        TimeCreated    = $_.TimeCreated

        Image          = ($d | Where-Object { $_.Name -eq 'Image'             }).'#text'

        CommandLine    = ($d | Where-Object { $_.Name -eq 'CommandLine'       }).'#text'

        ParentImage    = ($d | Where-Object { $_.Name -eq 'ParentImage'       }).'#text'

        ParentCmdLine  = ($d | Where-Object { $_.Name -eq 'ParentCommandLine' }).'#text'

        User           = ($d | Where-Object { $_.Name -eq 'User'              }).'#text'

        IntegrityLevel = ($d | Where-Object { $_.Name -eq 'IntegrityLevel'    }).'#text'

    }

} | Sort-Object TimeCreated | Format-List

Result:

17:25 PM  WerFault.exe       <- spawned by explorer.exe

18:06 PM  cmd.exe /c whoami  <- spawned by WerFault.exe  *** SUSPICIOUS ***

18:06 PM  conhost.exe        <- spawned by cmd.exe

18:06 PM  whoami.exe         <- spawned by cmd.exe

IOC: WerFault.exe spawning cmd.exe - Windows Error Reporting has zero legitimate reason to spawn a command shell.

Step 3 - Check Event ID 8 (CreateRemoteThread)

“Who injected into WerFault.exe to make it spawn cmd.exe?”

Get-WinEvent -FilterHashtable @{Path=$evtx; Id=8} -ErrorAction SilentlyContinue |

ForEach-Object {

    $d = ([xml]$_.ToXml()).Event.EventData.Data

    [pscustomobject]@{

        TimeCreated   = $_.TimeCreated

        SourceImage   = ($d | Where-Object { $_.Name -eq 'SourceImage'   }).'#text'

        TargetImage   = ($d | Where-Object { $_.Name -eq 'TargetImage'   }).'#text'

        StartAddress  = ($d | Where-Object { $_.Name -eq 'StartAddress'  }).'#text'

        StartModule   = ($d | Where-Object { $_.Name -eq 'StartModule'   }).'#text'

        StartFunction = ($d | Where-Object { $_.Name -eq 'StartFunction' }).'#text'

    }

} | Format-List

Result:

SourceImage   : C:\Windows\System32\rundll32.exe

TargetImage   : C:\Windows\System32\WerFault.exe

StartAddress  : 0x000002ED15F10000

StartModule   : -

StartFunction : -

IOC: StartModule: - and StartFunction: - = thread started at raw memory address = shellcode/reflective injection.

Full Attack Chain

rundll32.exe

  └─ [7:17:25 PM] CreateRemoteThread -> WerFault.exe   <- shellcode injected

                       └─ [7:18:06 PM] cmd.exe /c whoami  <- PPID spoofed child

                                └─ whoami.exe              <- recon command

IOCs Confirmed

IOC	Evidence
WerFault.exe spawning cmd.exe	WerFault never legitimately spawns a shell
rundll32.exe -> WerFault.exe via Event ID 8	Process injection confirmed
StartModule/StartFunction = `-`	Shellcode - no named module or function
Same rundll32 + shellcode pattern	Matches Calculator.exe injection from PowershellExec case

PPID Spoofing IOC Cheat Sheet

Signal	Why suspicious
WerFault.exe spawning cmd/powershell	Error reporter never launches shells
svchost/lsass/spoolsv spawning cmd	System services don’t spawn user shells
Large time gap between parent spawn and child spawn	Real parent-child is milliseconds
Parent process has no console/UI	Can’t legitimately spawn interactive tools
Event ID 8 on the spoofed parent before child spawns	Injection then PPID abuse

Processes That Should NEVER Spawn cmd.exe / powershell.exe

WerFault.exe, svchost.exe, spoolsv.exe, lsass.exe

winlogon.exe, services.exe, smss.exe, csrss.exe

taskhost.exe, taskhostw.exe

References

[HTB Academy] Certified Defensive Security Analyst (CDSA) - Module 3: Windows Event Logs & Finding Evil Skill Assessment. https://academy.hackthebox.com/

[HTB-CDSA] Sysmon threat detection scripts and XML queries used during this assessment. https://github.com/kismatkunwar89/HTB-CDSA

[SBousseaden] Common Windows Normal Processes Parent/Child Relationships (process tree mind map). https://twitter.com/SBousseaden

[Microsoft] Get-WinEvent (PowerShell cmdlet documentation). https://learn.microsoft.com/en-us/powershell/module/microsoft.powershell.diagnostics/get-winevent

[Sysmon] Sysinternals Sysmon (official documentation). https://learn.microsoft.com/en-us/sysinternals/downloads/sysmon

Module 3: Skill Assessment

Module 3: Skill Assessment

Assessment Navigation

Key Takeaway

Assessment Notes

Question 1: DLL Hijacking

DLL Hijack Investigation via Get-WinEvent

Investigation Methodology

Step 1 - Set the file path

Step 2 - Inspect XML structure

Step 3 - Enumerate Event IDs

Step 4 - Extract Event ID 7 and filter for unsigned DLLs

Step 5 - Pivot ProcessGuid to Event ID 1 (who ran Dism.exe)

Step 6 - Pivot ProcessGuid to Event ID 1 (who ran rundll32.exe)

Step 7 - Check for child processes spawned by Dism.exe

Step 8 - Check impact (network, files, registry)

Pivot Logic Summary

Final Attack Chain

DLL Hijack Indicators Cheat Sheet

Questions 2 and 3: Unmanaged PowerShell / CLR Injection

Unmanaged PowerShell / CLR Injection Investigation via Get-WinEvent

Background - What is Unmanaged PowerShell?

IOCs - What to Look For

Investigation Methodology

Step 1 - Set path and enumerate Event IDs

Step 2 - Extract all Event ID 7 into $hits

Step 3 - Find all processes that loaded CLR DLLs

Step 4 - Timeline gap analysis

Step 5 - Confirm injector via Event ID 8 (CreateRemoteThread)

Full Attack Chain

Pivot Logic Summary

CLR Injection IOC Cheat Sheet

Questions 4 and 5: LSASS Dump and Follow-On Login

LSASS Dump Investigation via Get-WinEvent

Investigation Methodology

Step 1 - Set path and inspect XML structure

Step 2 - Enumerate GrantedAccess values against lsass

Step 3 - Hunt for 0x1fffff access on lsass

IOCs Confirmed

LSASS Dump IOC Cheat Sheet

Question 6: Strange PPID

Strange PPID Investigation via Get-WinEvent

Investigation Methodology

Step 1 - Set path and enumerate Event IDs

Step 2 - Dump all Event ID 1 process creations

Step 3 - Check Event ID 8 (CreateRemoteThread)

Full Attack Chain

IOCs Confirmed

PPID Spoofing IOC Cheat Sheet

Processes That Should NEVER Spawn cmd.exe / powershell.exe

References
